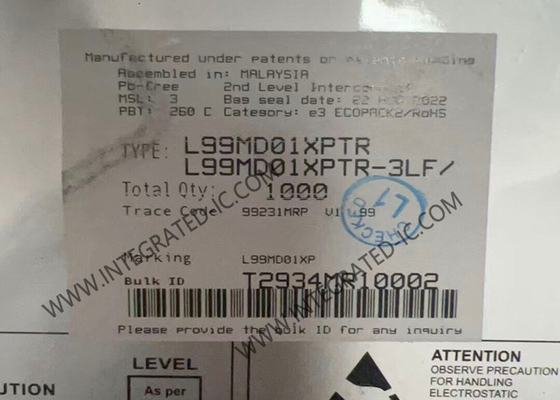

L99MD01XPTR Integrated Circuit Chip Octal Half-Bridge Driver With SPI Control For Automotive Application
L99MD01XPTR Integrated Circuit Chip Octal Half-Bridge Driver With SPI Control For Automotive Application
Opis
Part Number:
L99MD01XPTR
Output Current::
250 mA
Operating Supply Current::
4.2 mA
Minimum Operating Temperature::
- 40 C
Maximum Operating Temperature::
+ 150 C
Supply Voltage - Max::
38 V
Podkreślić:
L99MD01XPTR
,
L99MD01XPTR Integrated Circuit Chip
,
SPI Control Octal Half-Bridge Driver
L99MD01XPTR Integrated Circuit Chip Octal Half-Bridge Driver With SPI Control For Automotive Application
Product Description Of L99MD01XPTR
L99MD01XPTR is an octal half-bridge driver for automotive applications.
The device is intended to drive DC and/or stepper motors. Using the boost converter it’s possible to drive 4 stepper motors simultaneously. Without boost converter the system is able to run 3 stepper motors in sequential mode or 2 stepper motors simultaneously. The octal half bridge configuration allows also to drive 4 DC-motors simultaneously and 7 DC-motors sequentially.
The integrated 24 bit standard Serial Peripheral Interface (SPI) controls all outputs and provides diagnostic information: normal operation, open-load in on-state, overcurrent, temperature warning and overtemperature.
Specifications Of L99MD01XPTR
Half Bridge
250 mA
4.2 mA
- 40 C
+ 150 C
Supply Voltage - Max:
38 V
Supply Voltage - Min:
6 V
Unit Weight:
484.700 mg
Feature Of L99MD01XPTR
8 half bridges
RON = typ. 0.9 Ω (HS), 0.64 Ω (LS) @ Tj= 25 °C
Current limit of each output at min. 0.8 A
Intrinsic DC/DC step up converter driving an external MOSFET
PWM mode option for all half bridges for hold current
Internal PWM generation
Two current monitor outputs
SPI interface for data communication
Temperature warning
All outputs overtemperature protected
All outputs short circuit protected
VCCsupply voltage 3.0 to 5.3 V
Very low current consumption in standby mode typ. 5 μA
VSoperating range compliant: 6 V – 18 V
Applications Of L99MD01XPTR
Stepper motor driver and / or DC
Intended to drive HVAC flaps
